After a storm tears up a parking lot, the damage itself holds clues about why it flooded, and a topographic survey captures those clues before repairs erase them. A survey before rebuilding storm-damaged parking and drainage areas records the failed surface, reveals the grade problems that concentrated the water, and provides the base for a better design. Rushing to repair without documenting the damage first wastes the chance to understand what went wrong. The survey preserves that information and guides a rebuild that actually fixes the problem.

Recording the Damaged Surface Before Repair Work Alters It

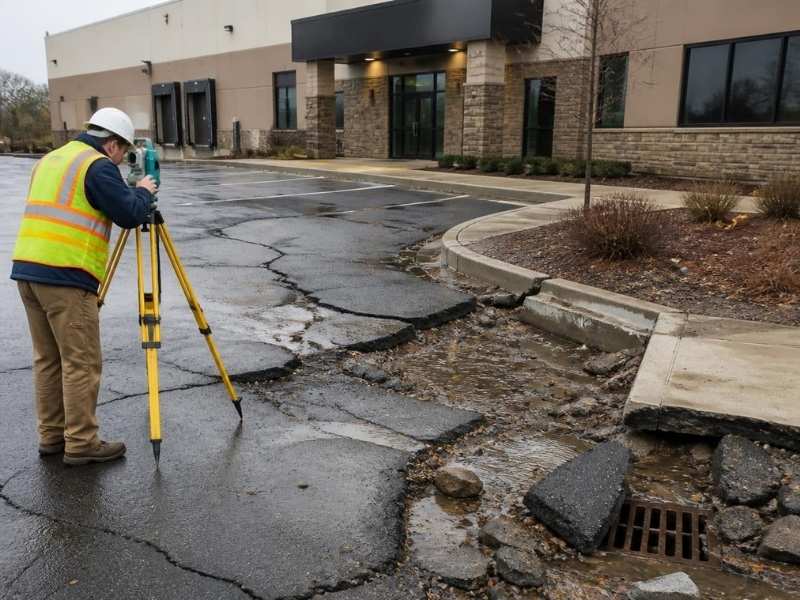

The damage tells a story, so the survey records the damaged surface before repair work alters it. The displaced pavement, washed-out areas, debris lines, exposed subgrade, curbs and drainage features all get documented while they still show what happened.

Repair work erases the evidence. Once crews start clearing debris and rebuilding, the damaged conditions disappear, taking with them the clues about why the area failed. Surveying first captures the washouts, the displaced pavement, and the debris lines that mark where water flowed and pooled.

This record serves the rebuild. Documenting exactly how and where the surface failed gives the design team information they can’t get once repairs begin. The survey preserves the damaged condition, so the rebuild can address the actual failure rather than just patching the visible damage.

Identifying Grade Failures That Concentrated Stormwater

The damage often points to grade problems, so the survey helps identify the grade failures that concentrated the stormwater. Low points, reverse slopes, blocked routes, settled pavement, overtopped curbs and poorly positioned inlets all get examined.

Flooding usually has a cause in the grades. A low point where water collected, a slope running the wrong way, or an inlet placed too high can concentrate stormwater and overwhelm an area. The survey measures the grades to reveal these failures, showing why the water gathered where it did.

Finding the cause is what enables a real fix. A rebuild that ignores the grade failure just recreates the problem, and the area floods again in the next storm. By identifying the low points, reverse slopes and misplaced inlets, the survey shows the design team what to correct, so the rebuild solves the flooding rather than repeating it.

Mapping Tie-In Elevations Around Undamaged Improvements

The rebuilt area has to connect to what survived, so the survey maps the tie-in elevations around the undamaged improvements. Entrances, sidewalks, buildings, loading zones, neighboring pavement and utilities all set the elevations the new surface has to meet.

The rebuild can’t exist in isolation. The repaired pavement has to connect smoothly to the entrances, sidewalks and buildings that weren’t damaged, matching their elevations. Neighboring pavement and utilities also set fixed points the new surface has to reach. The survey records these tie-in elevations.

These fixed points constrain the design. The rebuilt area has to drain properly while still meeting the surrounding improvements at their existing elevations. The survey maps these connections, so the new design ties into the undamaged features correctly rather than creating awkward transitions or new drainage problems at the edges.

Supporting a Revised Drainage and Pavement Design

All the survey data feeds the new design, so it supports a revised drainage and pavement plan. The contours, breaklines, inlet data and surface models let engineers plan the slopes, collection points and replacement limits.

The revised design aims to fix what failed. Using the surveyed surface, the engineer can plan grades that drain properly, position inlets where they’ll collect the water, and define how far the replacement extends. The design corrects the grade failures the survey identified.

The survey makes this design reliable. Rather than guessing at the grades, the engineer works from measured contours and inlet elevations, planning a drainage and pavement system that actually handles the stormwater. The survey turns the lessons from the damage into a design that performs better than what the storm destroyed.

Checking the Reconstructed Area Before Final Acceptance

The rebuild has to be verified, so the survey checks the reconstructed area before final acceptance. The completed elevations get compared against the design to confirm positive drainage and proper transitions.

Verification confirms the fix worked. After the reconstruction, measuring the finished elevations and comparing them against the design shows whether the area drains as intended. The check confirms the grades run the right way and the transitions to the surrounding improvements are correct.

Catching a problem before acceptance is essential. If the rebuilt area doesn’t drain properly, finding out during the final check allows correction before the work is accepted and the next storm arrives. The survey verifies the reconstruction achieved its drainage goals, so the rebuilt parking and drainage perform as designed rather than flooding again.
